- PRODUCT DETAIL
Airport Marking Glass Beads
Airport pavement markings on runways, taxiways and ramps play an important role in preventing often serious accidents and incursions by guiding airport traffic safely between the air, runways, and parking gates.
TTB-1325C Type I (Gradation A)
1.5 Index Glass Beads for drop-on applications. The sizing and quality is similar to typical traffic safety and highway markings.
TTB-1325C Type III
1.9 Index Glass Beads for drop-on applications produces a narrow cone of light due to higher refractive index. Because of their relatively high costs, typically limited to marking airport runways only.

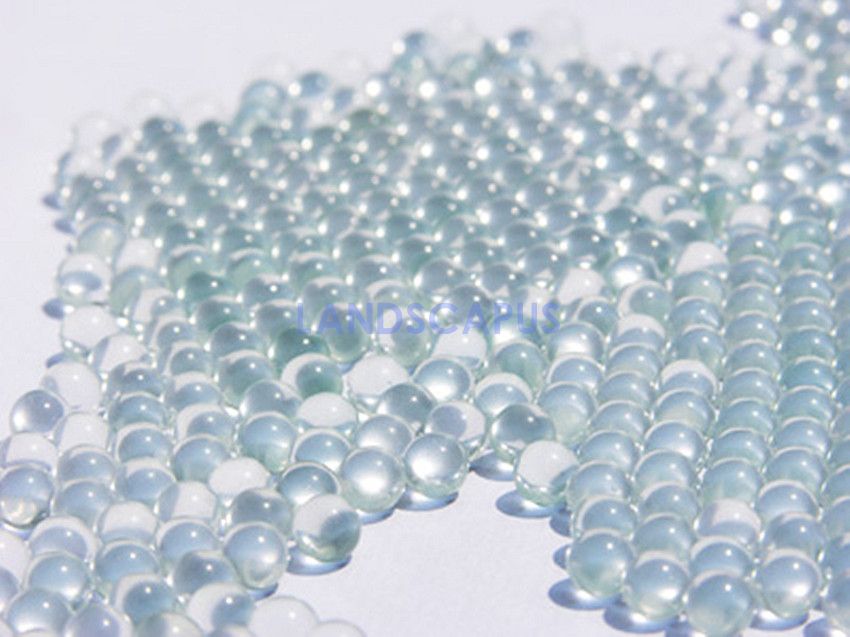

Landscapus 190 Lux plus 9 |
Landscapus 190 lux plus 9 is AIRPORT grade glass beads for using in Thermoplastic (hot melt）paint, two-component paint, solvent road marking paint and water borne road marking paint. |
Technical details: |
A Refractive Index >1.93 |
B Retroreflectivity Value: 1000mcd/Sq M/Lx |

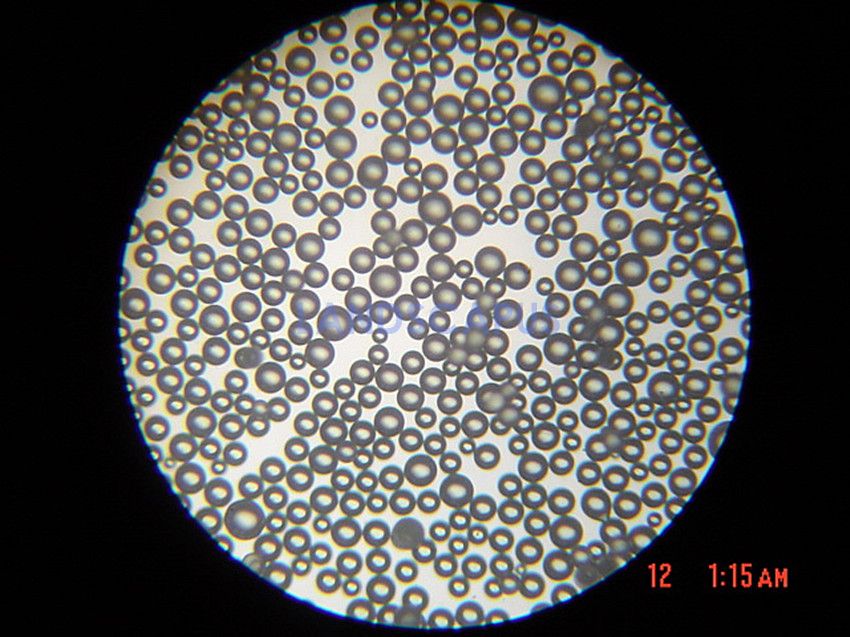

CSpherical beads: >90% |
D Surface Treatment: N/Dual/t10/t11 |
E Sizes:TT-B-1325 D type 3 |
E Packing: 25kgs/Drum. |
Gradation, percent by weight, passing
Type I | Type III | Type IV | |||||||||
U.S. Sieve # | Microns | A | B | A | B | ||||||
Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | ||
12 | 1700 | --- | --- | --- | --- | --- | --- | 100 | --- | 100 | --- |
14 | 1400 | --- | --- | --- | --- | --- | --- | 95 | 100 | --- | --- |
16 | 1180 | --- | --- | --- | --- | 100 | --- | 80 | 95 | 95 | 100 |
18 | 1000 | --- | --- | --- | --- | --- | --- | 10 | 40 | --- | --- |
20 | 850 | 100 | --- | --- | --- | 95 | 100 | 0 | 5 | 35 | 70 |
30 | 600 | 80 | 100 | --- | --- | 55 | 75 | --- | --- | 0 | 5 |
40 | 425 | --- | --- | --- | --- | ||||||
